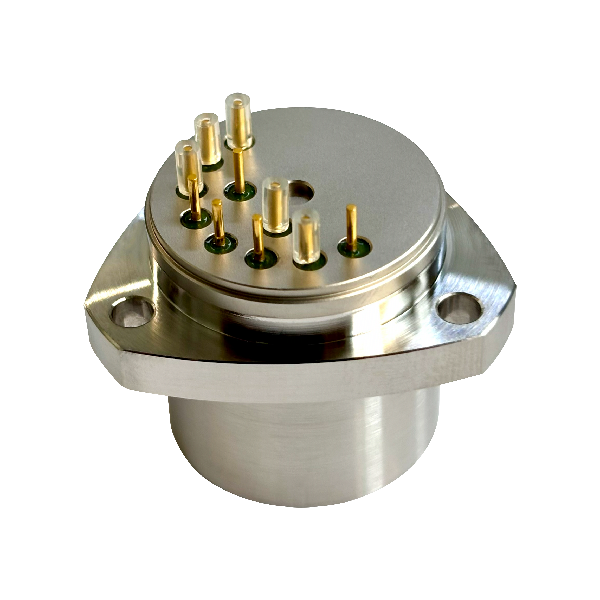

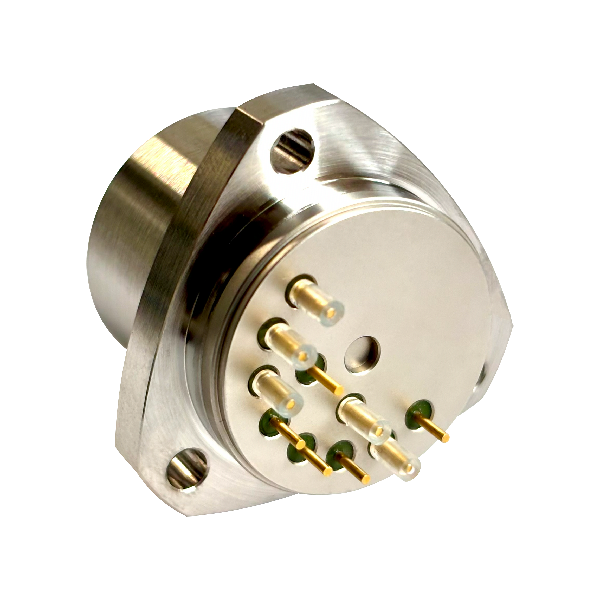

The ASAP-V01 is a single-axis fibre optic angular velocity meter with normalised calibration designed to record angular velocities in real time with a digital output via RS485 interface

COMPLETENESS LIST
AND PARAMETER

Product card

Single-axis fiber optic angular velocity meterwith normalized calibration Toolshed Slovakia, spol. s r.o.

Parameter Specified

Power consumption, W 7.0

Range of measured angular rate, deg/sec ± 250

Bias drift at changing temperature from -40°C to +60°C (100 s-averaging, 1σ), deg/h ≤ 6.2

Bias drift at stabilized temperature (100 s-averaging, 1σ), deg/h ≤ 6.0

Random walk (Allan variance), deg/√h 6.8

Scale factor error in temperature range -40°C to +60°C (1σ), ppm ≤60

Bandwidth, Hz 400

Misalignment, arc.min. 5.0

Weight (net), kg 0.5 ±10%

Dimensions, mm Ø104x31

Output RS485

Power supply, V 5V±0.25

PRODUCT SERVICE LIFE, STORAGE AND MANUFACTURER'S WARRANTIES

Service Life

ASAP-V01 service life – 5 years, including a two-year storage period in the manufacturer's packaging in heated storage rooms.

Warranty Terms

The manufacturer guarantees the quality of the product provided that the consumer complies with the conditions and principles of transport, storage, assembly and operation within 12 months from the date of commissioning.

BASIC PRODUCT INFORMATION
AND TECHNICAL DATA

Overview

Single-axis fiber optic angular velocity meter with standardized calibration It can realize single-axis real-time measurement of the carrier angular velocity and output the digital angular velocity value.

Model

ASAP-V01

Single-axis fiber optic angular velocity meter with normalized calibration
